PLL designs based on SAA1057 PLL chip, controlled by a PIC16F84

Weather satellite receiver pll, 137 - 141 MHz
0.512 - 30 MHz
512 - 1710 kHz
72 - 92 MHz & 87.50 - 108 MHz

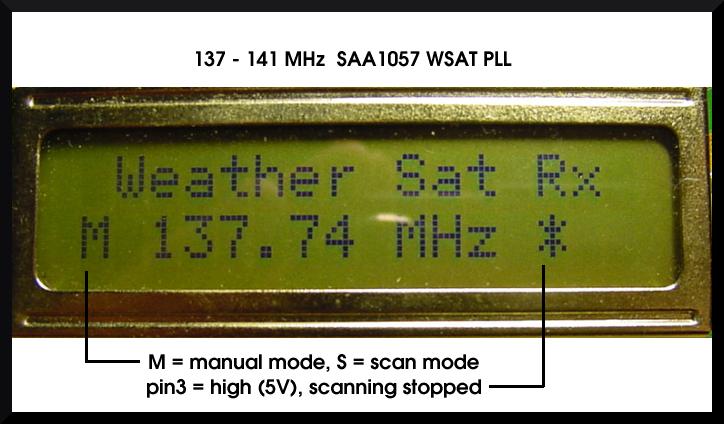

PIC16F84 & SAA1057 weather satellite PLL

updated 6
-- Click on hex code for downloading --

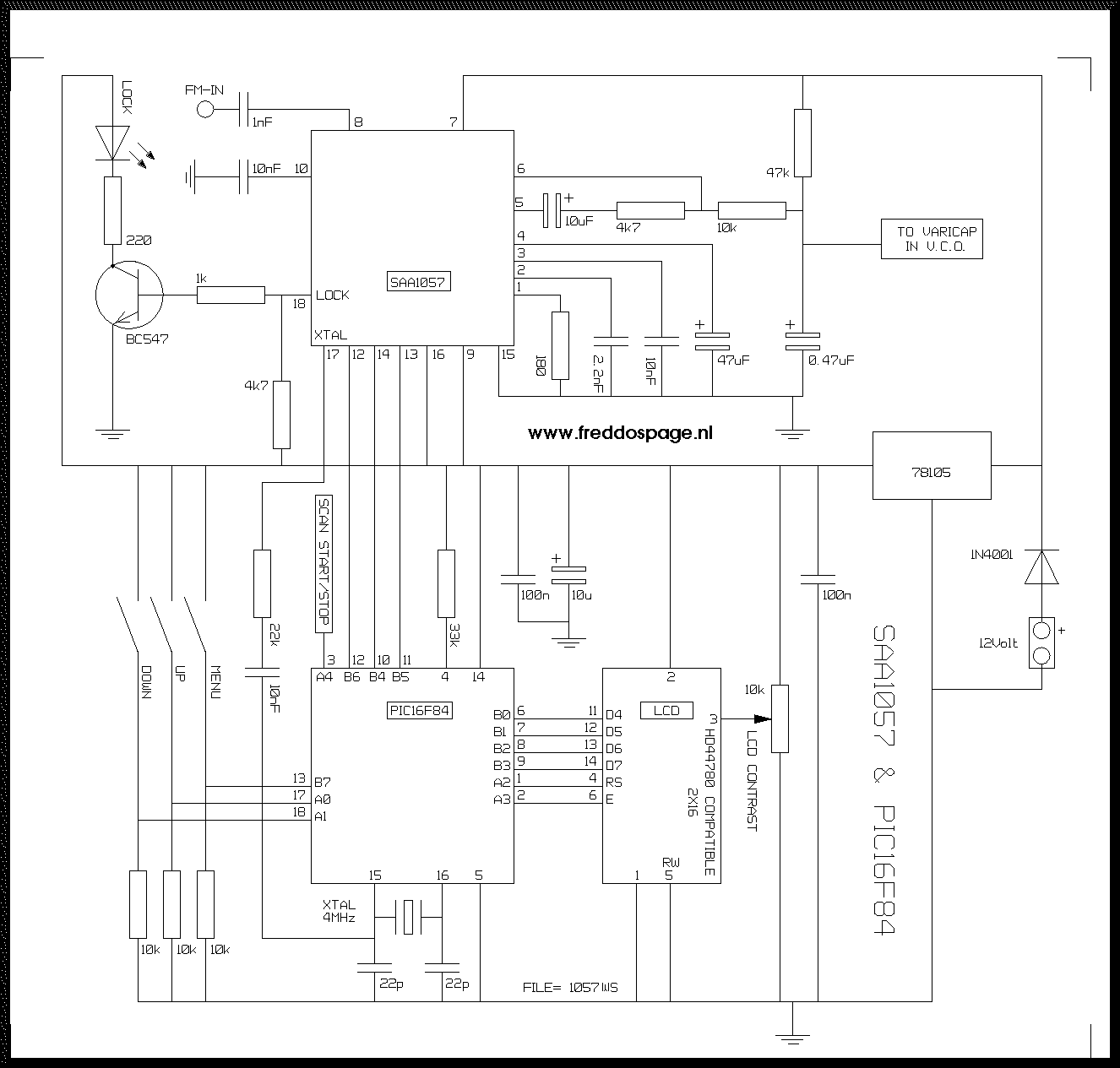

receiver pll circuit diagram

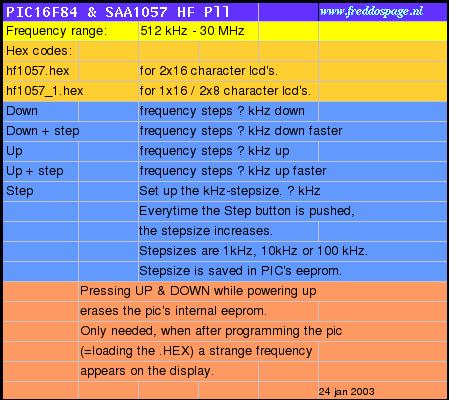

PIC16F84 & SAA1057 HF Tx PLL, 0.512 - 30 MHz

-- Click on hex code for downloading --

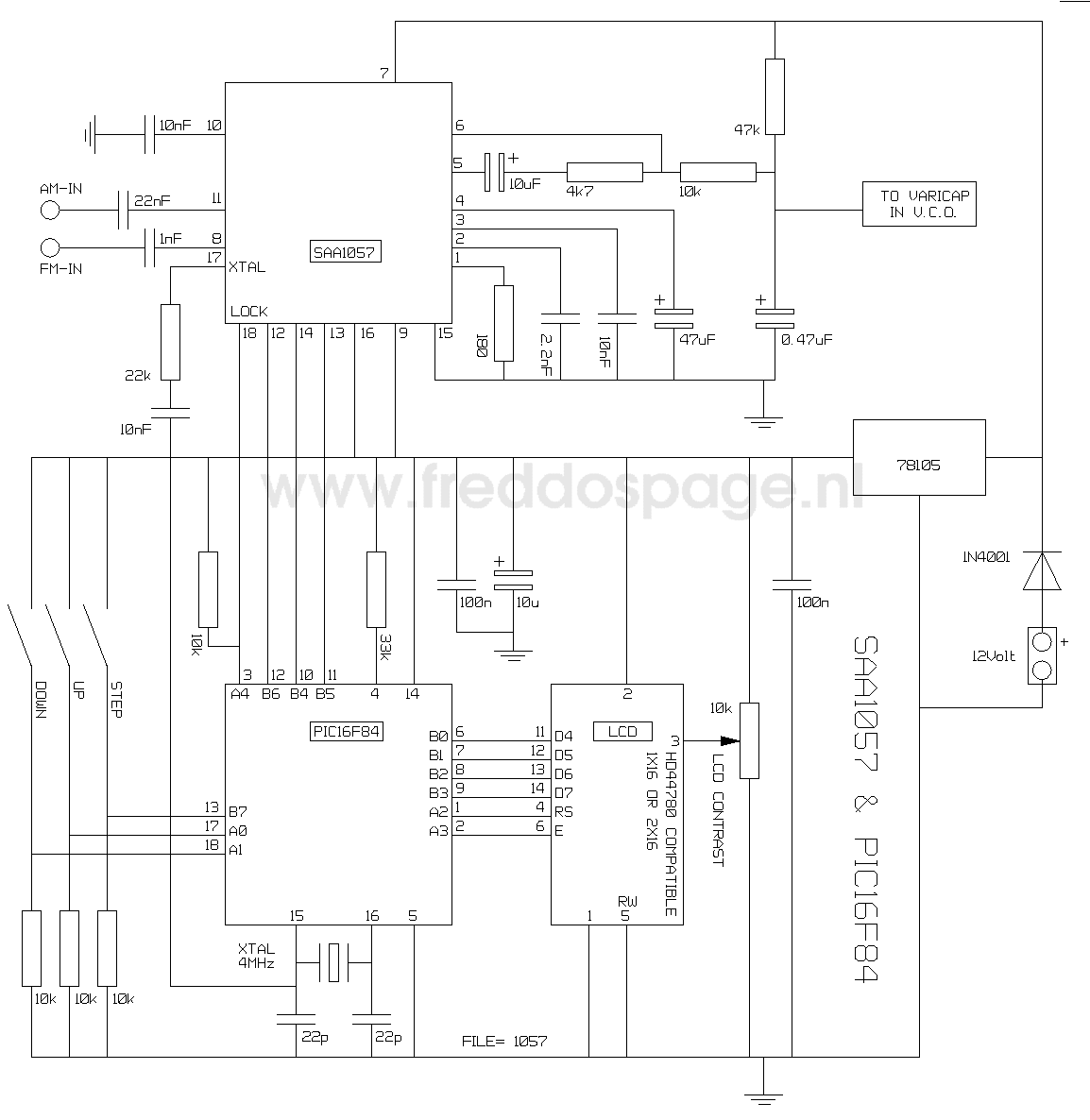

circuit diagram

PIC16F84 & SAA1057 AM Tx PLL, 512 - 1710 kHz

updated 24

SAA1057 AM PLL, LCD readout

-- Click on hex code for downloading --

circuit diagram

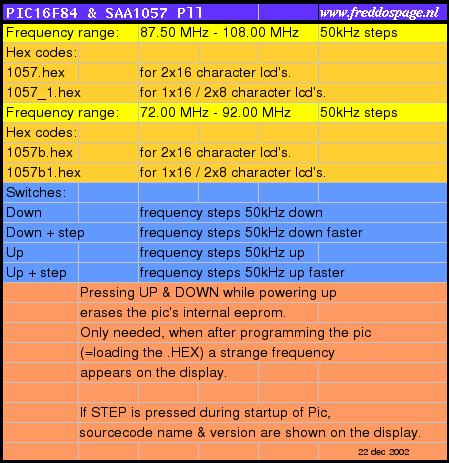

PIC16F84 & SAA1057 FM PLL, 87.50 - 108 MHz / 72 - 92 MHz

-- Click on hex code for downloading --

circuit diagram
SAA1057 & PIC
SAA1057 & PIC16F84

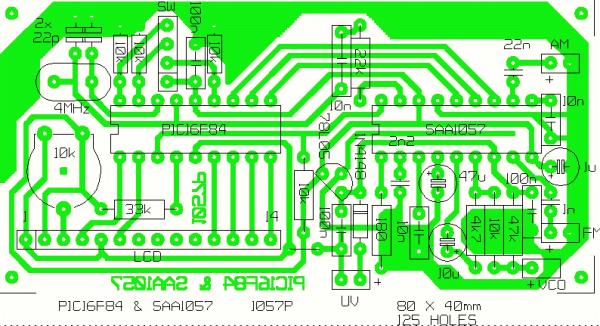

Layout example
Layout example

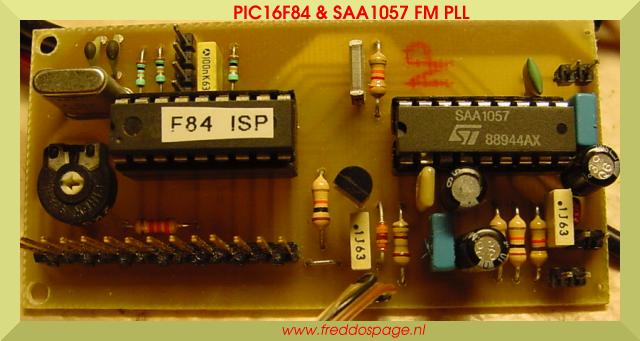

Prototype

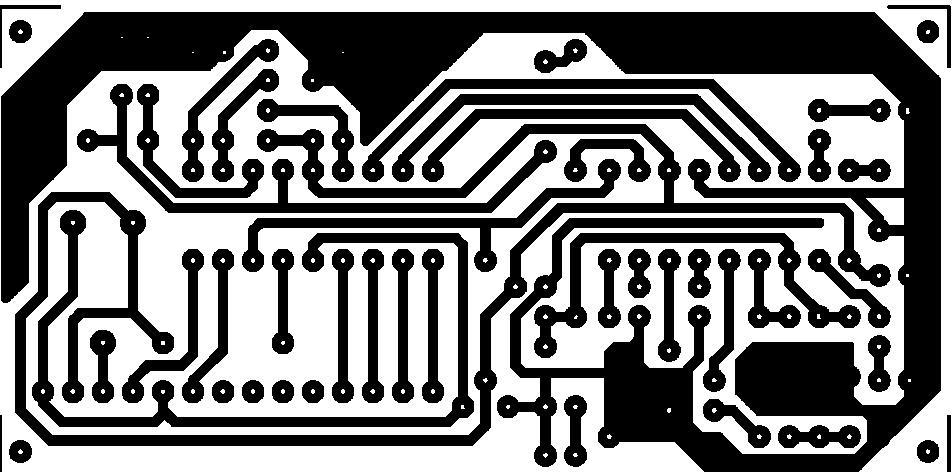

 PCB
Layout size = 80 x 40mm
